Taizhou Xiongshi Plastic Mould Co., Ltd have rich experience in producing toy moulds, especially on vacuum cleaner toy mould.

I. Vacuum Cleaner Toy Mould part design

3D part design can be made by customer's sample. The best provided by customer. In case not have sample, only have sample pictures, we can try to find the same sample from the market.

With original samples, we can simiply make part 3D design. And we can anlysis the parting lines, gate type and gate position from the samples to make the best 3D mould designs.

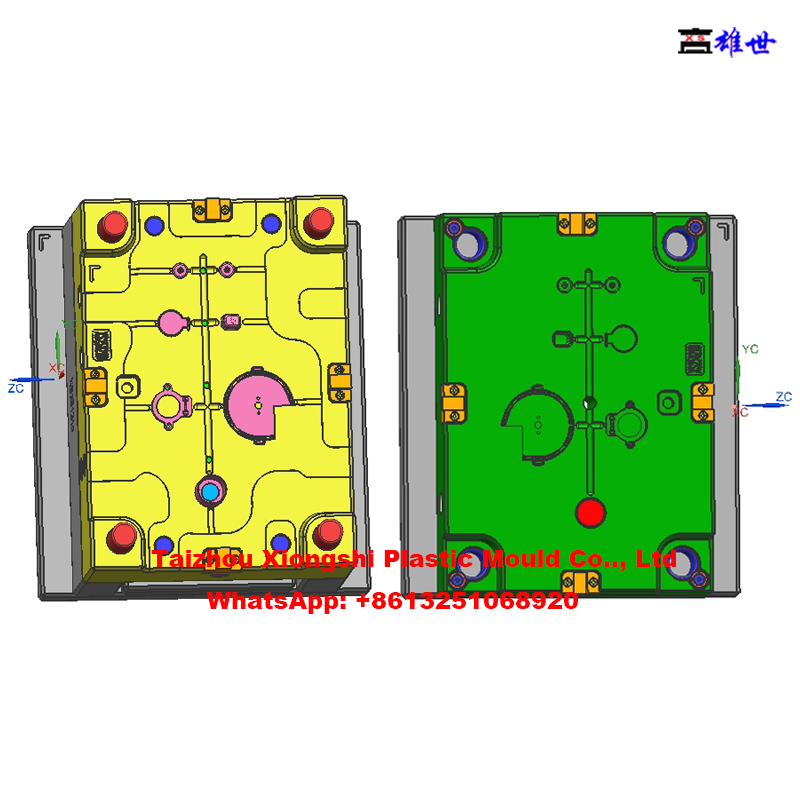

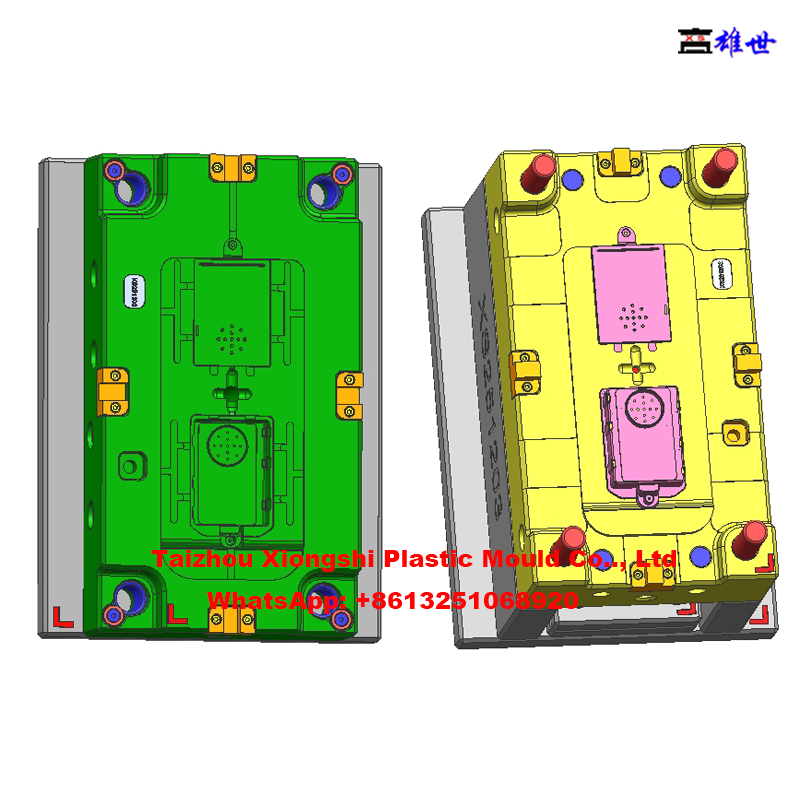

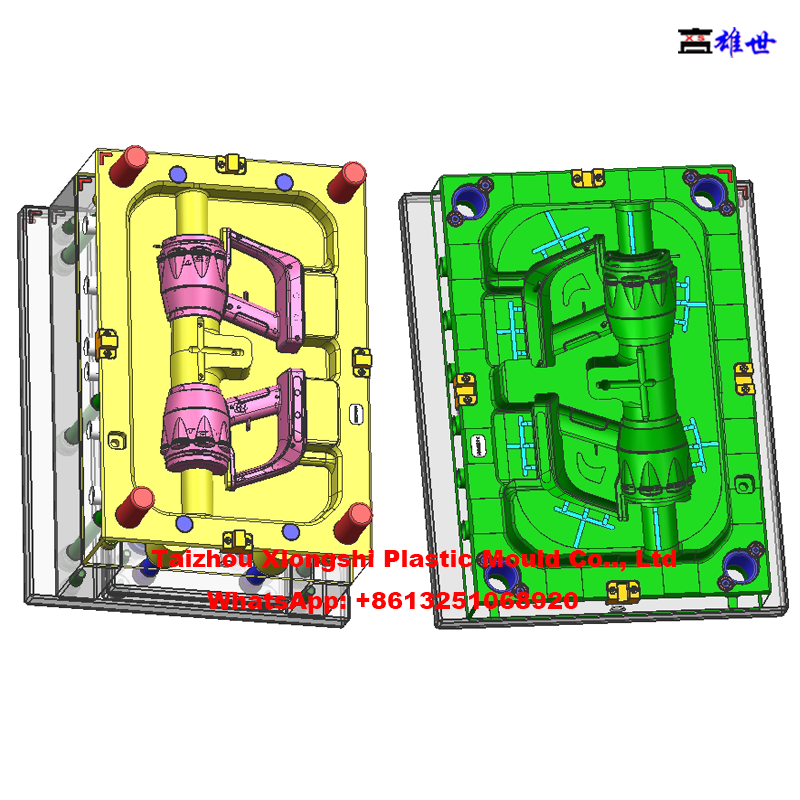

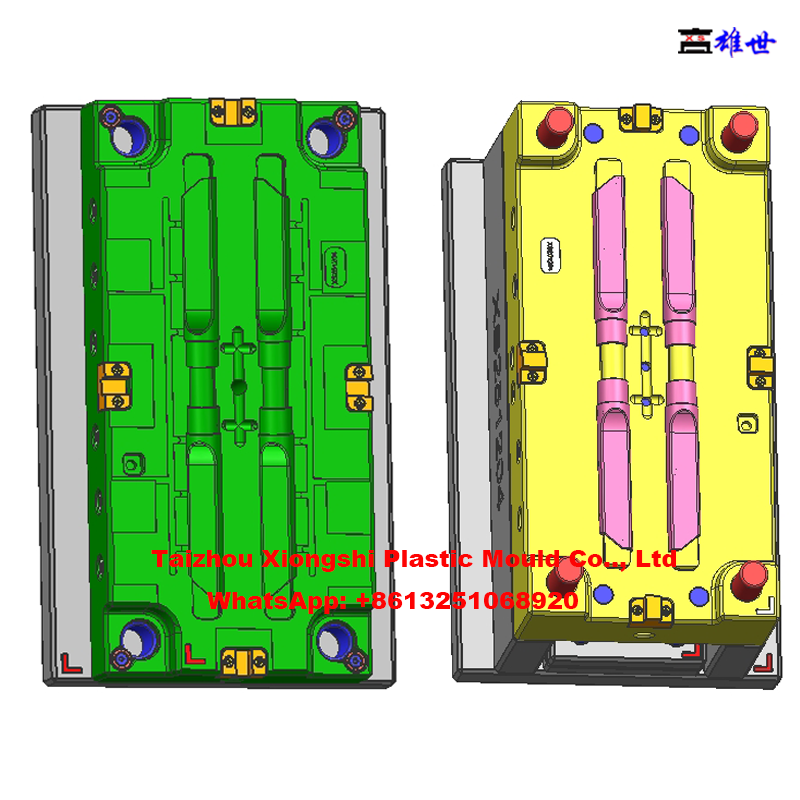

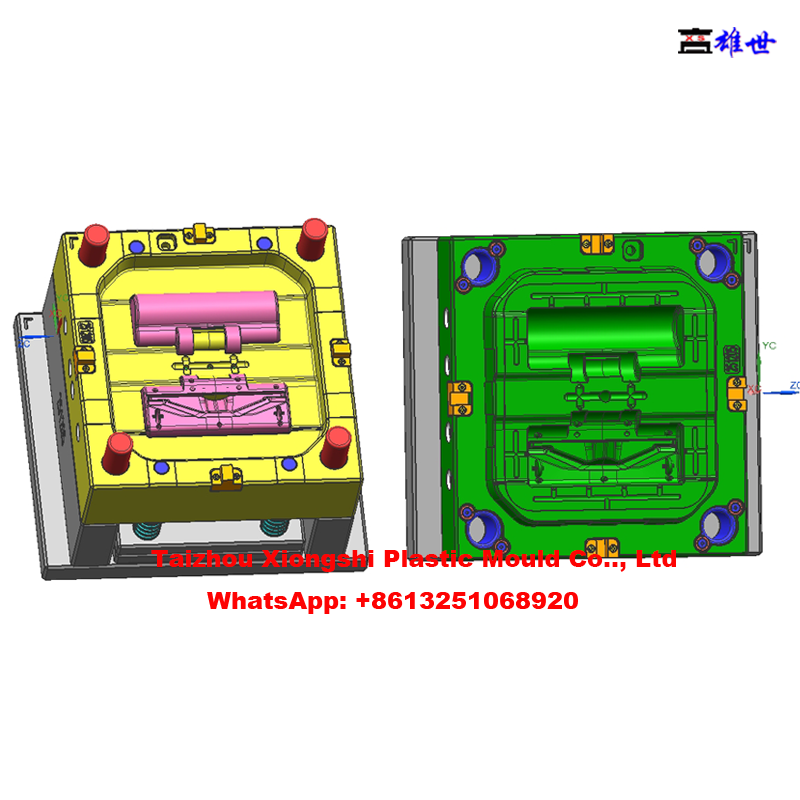

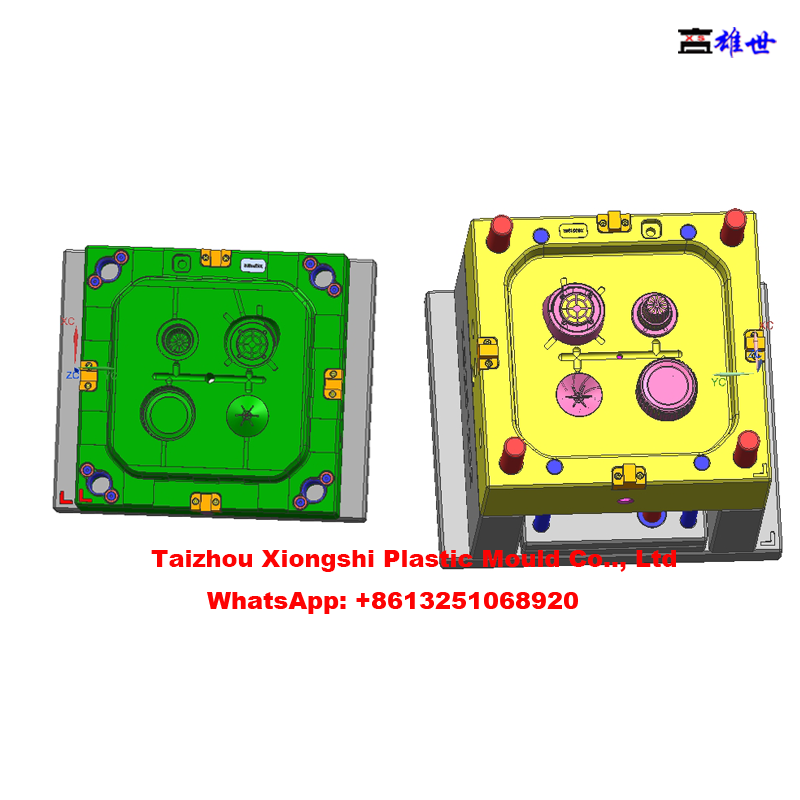

II. Vacuum Cleaner Toy Mould 3D design

Once part 3D designs got done and confirmed by customer, moulds 3D design can be processed. In order to make the perfect mould 3D design ready as soon as possible, we need to know the following informations: 1. Injection machine specification, the clamping force, injection weight, platen drawing (location ring, KO drawing), etc. 2. Plastic material specification: shinkage rate, flow rate, etc.

III. Vacuum Cleaner Toy Mould tooling process

Steel cutting --> CNC milling tooling --> Holes Drilling --> CNC engraving tooling --> Deep holes drilling --> EDM --> Polishing --> Mould test.

IV. Vacuum Cleaner Toy Mould test

Mould test need to use same plastic raw material, especially on the plastic raw material shrinkage rate, flow rate, etc. We take mould test video and send it to customer to view. And we will send the mould test samples to inspect the quality. But for the big parts mould test samples, normally we don't send the samples to customer to check the quality. Customer can come to our factory to check the mould trail, another way customer can order courier to collect the samples package from our company.

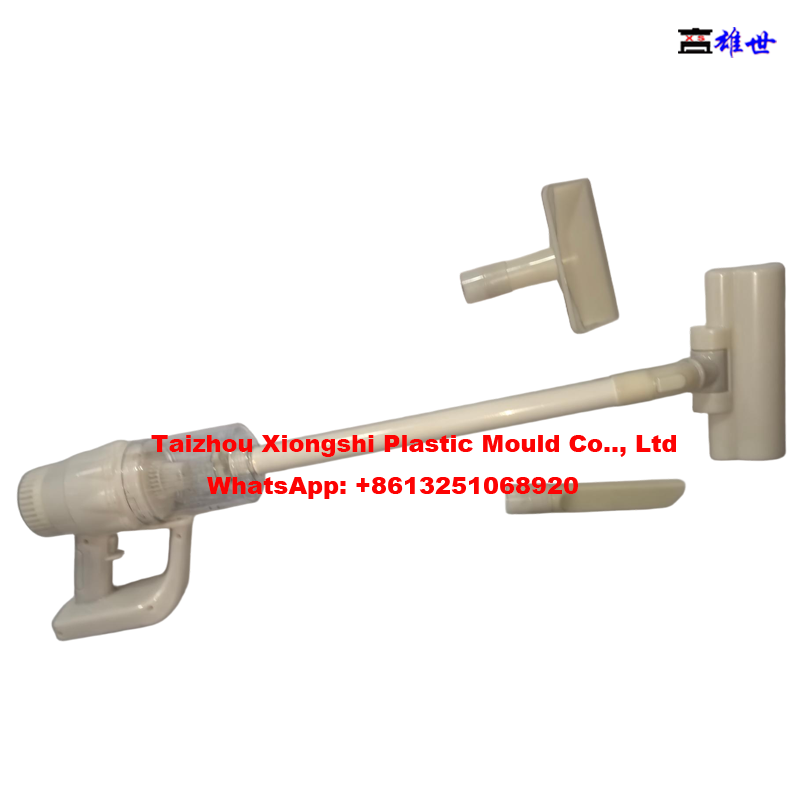

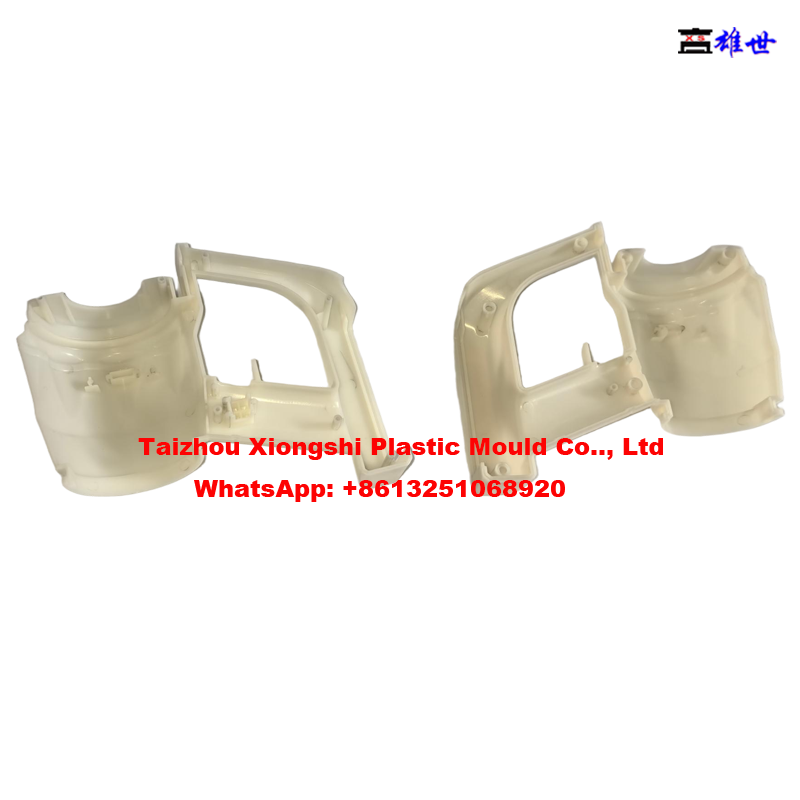

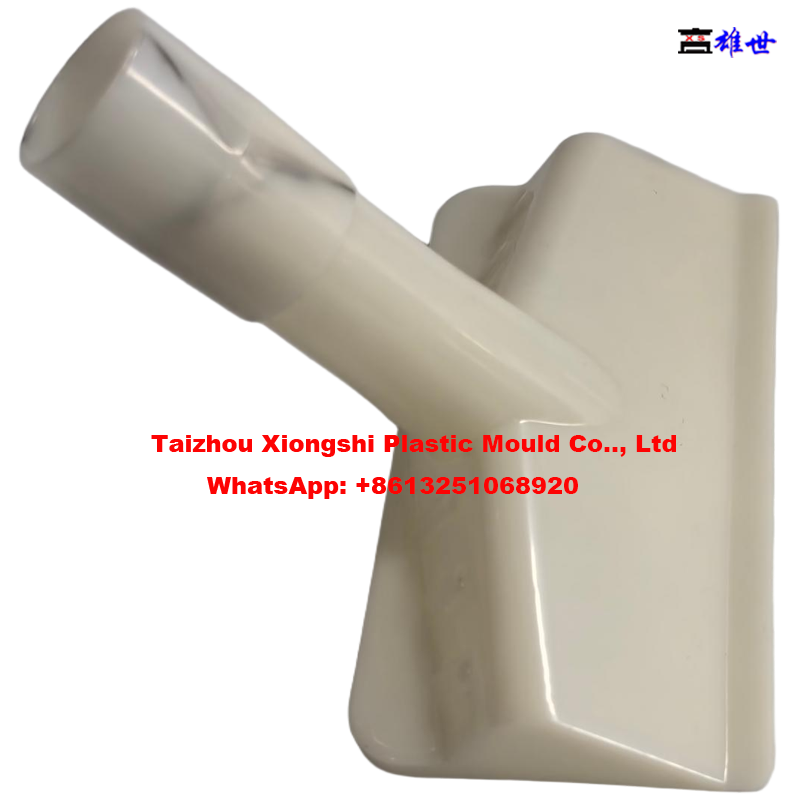

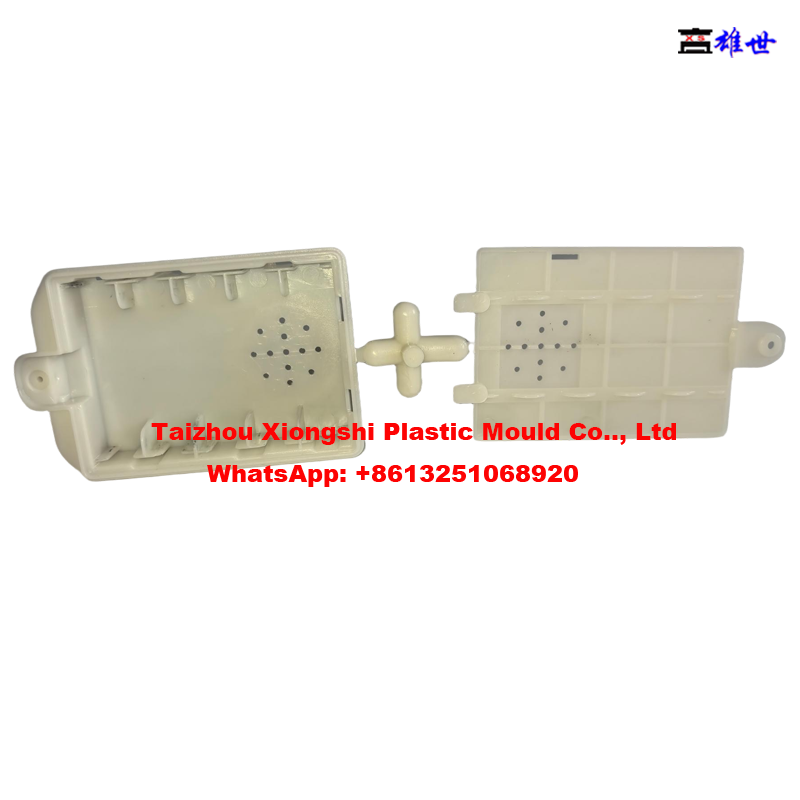

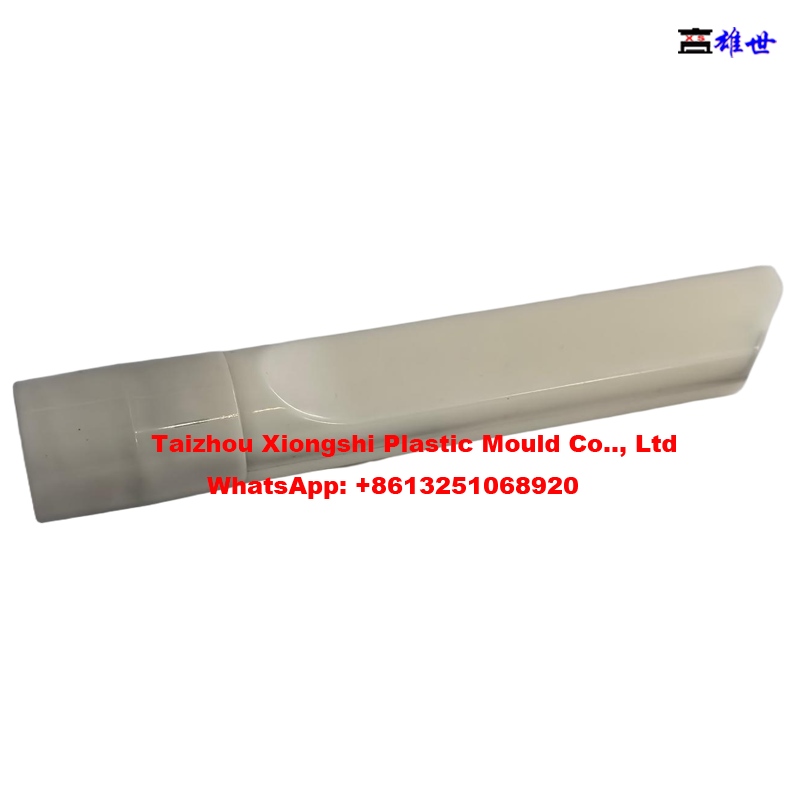

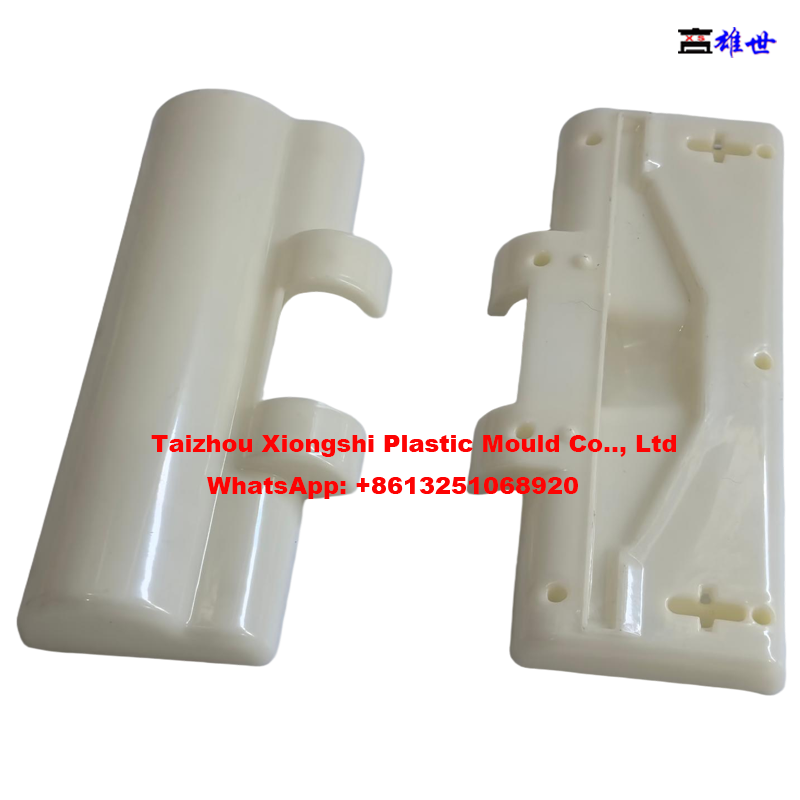

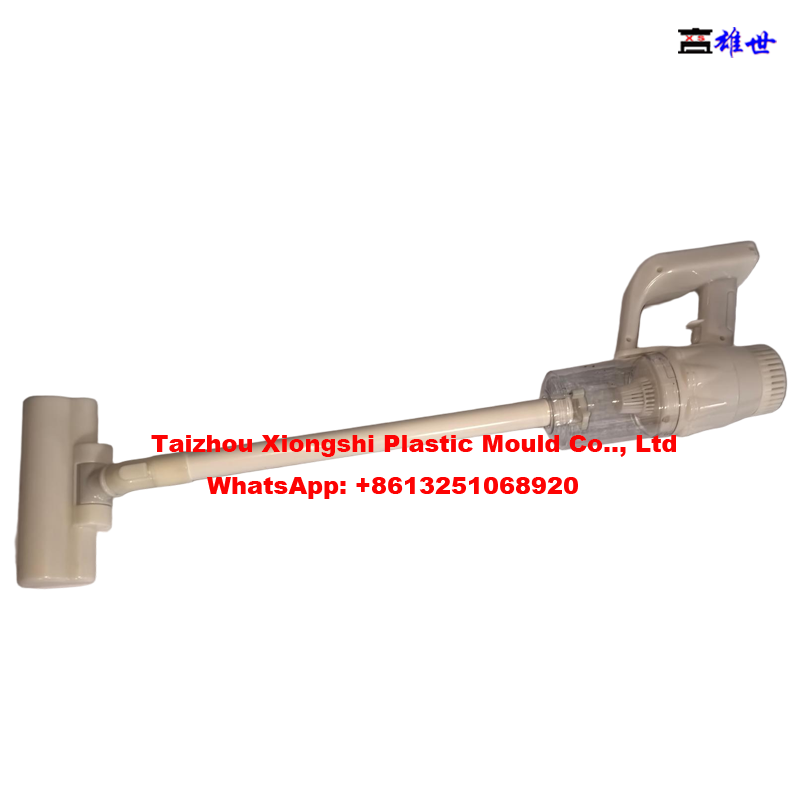

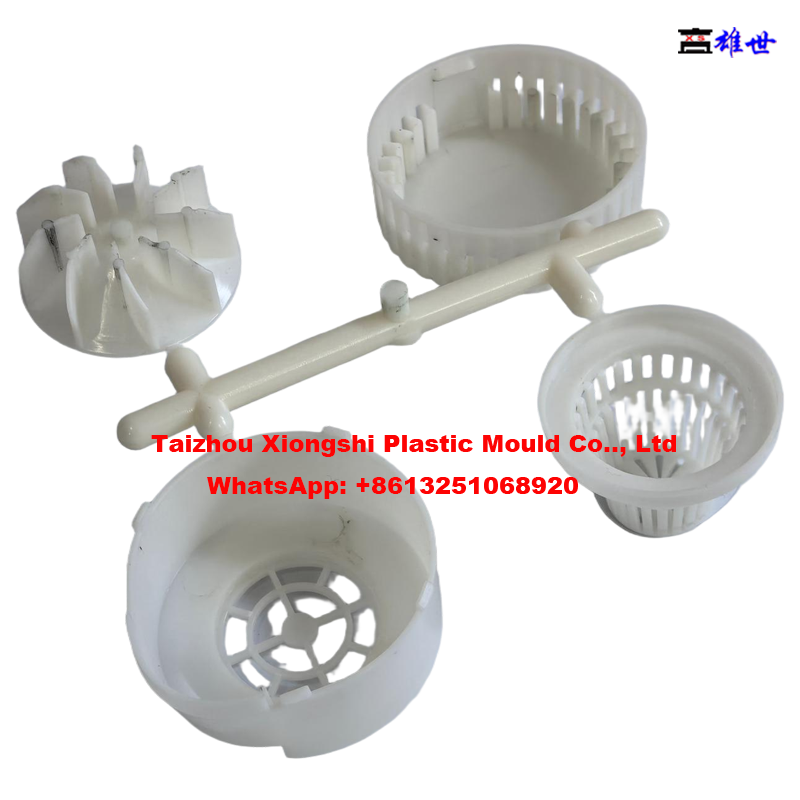

V. Vacuum Cleaner Toy Mould test samples pictures

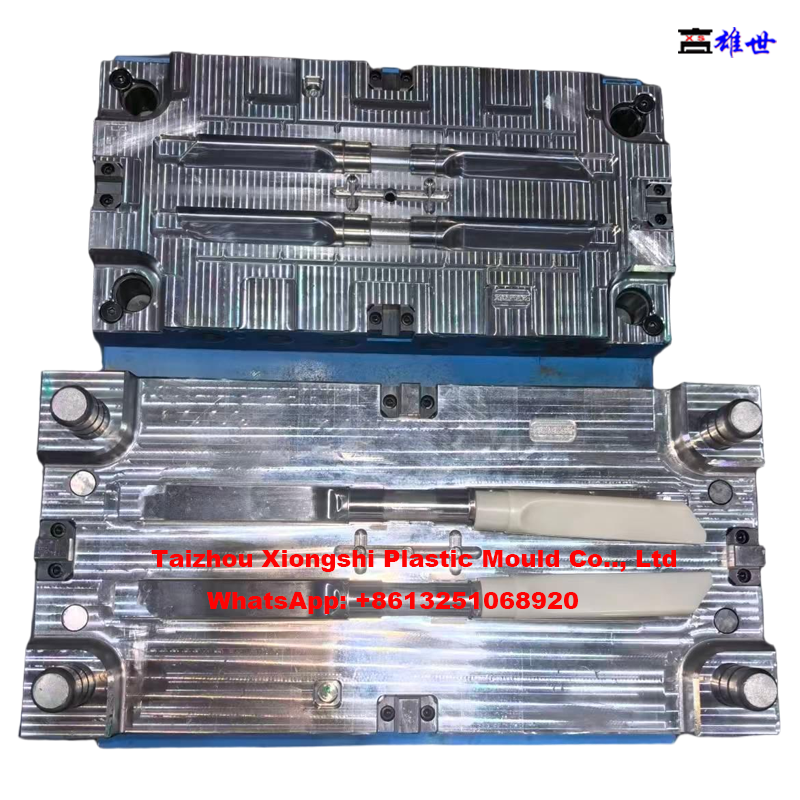

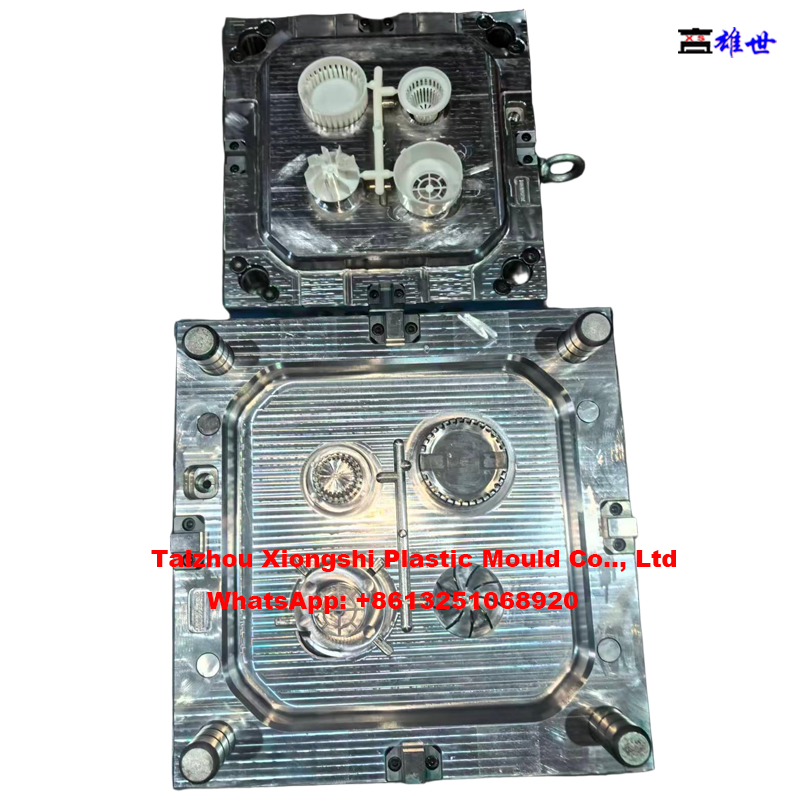

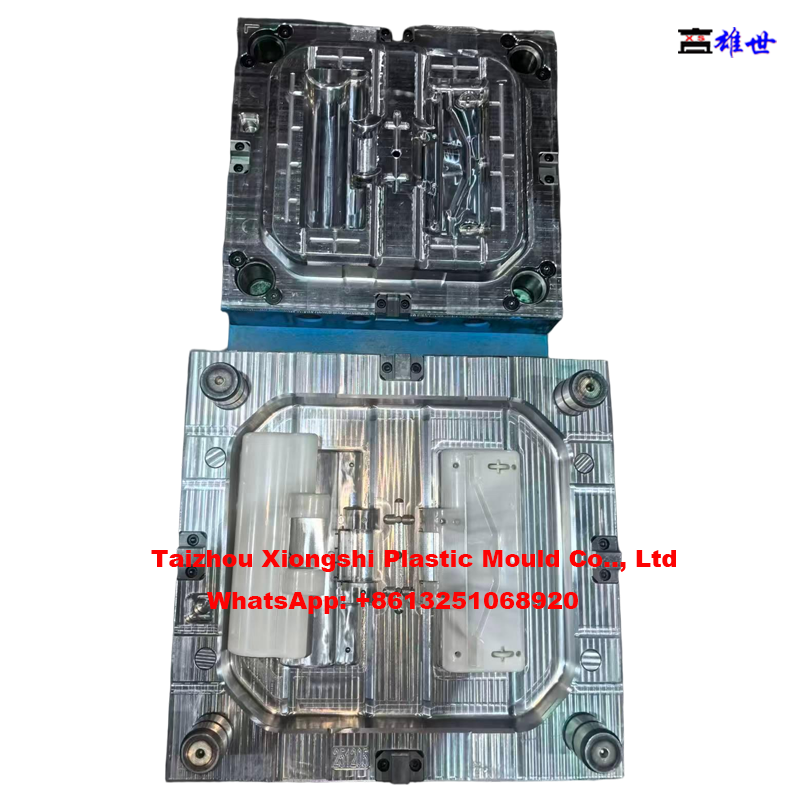

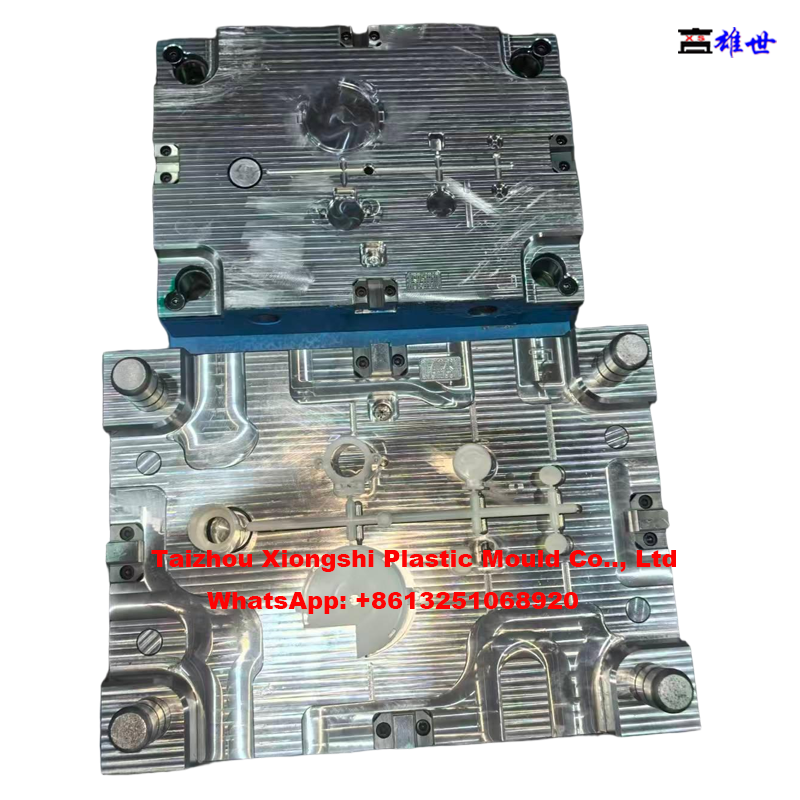

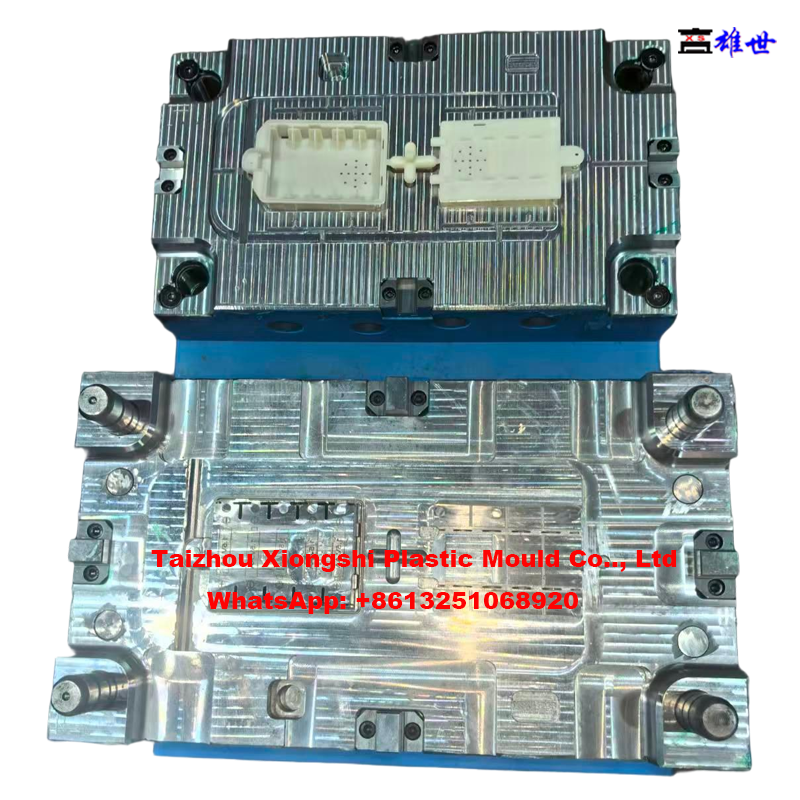

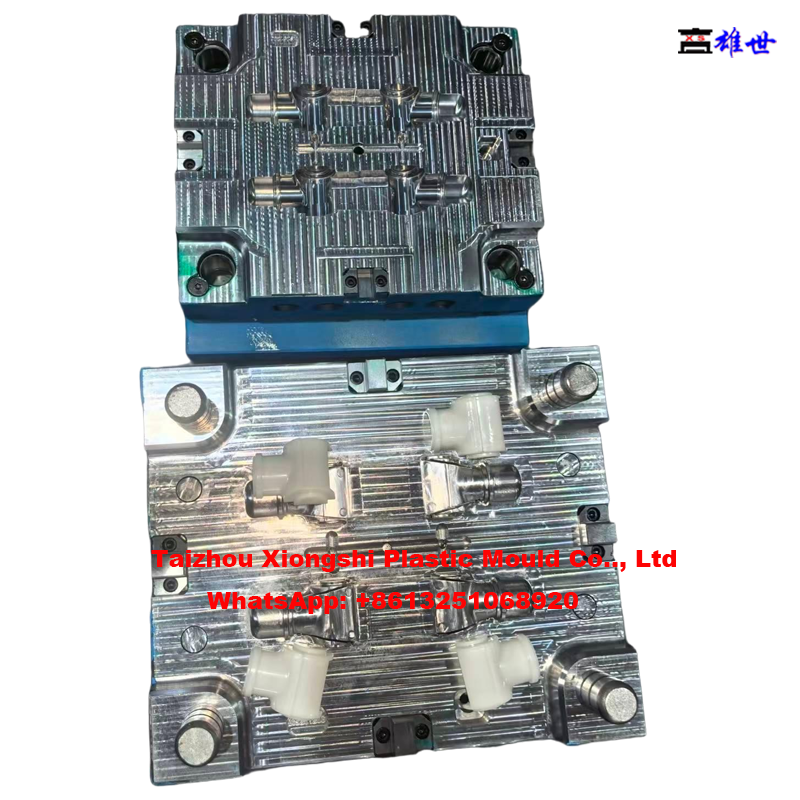

VI. Vacuum Cleaner Toy Mould pictures

VII. Vacuum Cleaner Toy Mould delivery

Moulds normally packed with export standard wooden cases. Stick the shipping mark on the wooden cases. Normally shipping company choosen by customer, but we also provide the service to find the shipping agent here and arrange the shipment for customer. Our company have long time cooerpated shipping agent who's charge is competitive.

All the moulds with the mould name plate, we can find the basic information of the mould from the plate.

Welcome to contact us and order moulds from us, we will do our best effort to provide best quality and best price moulds to you.
