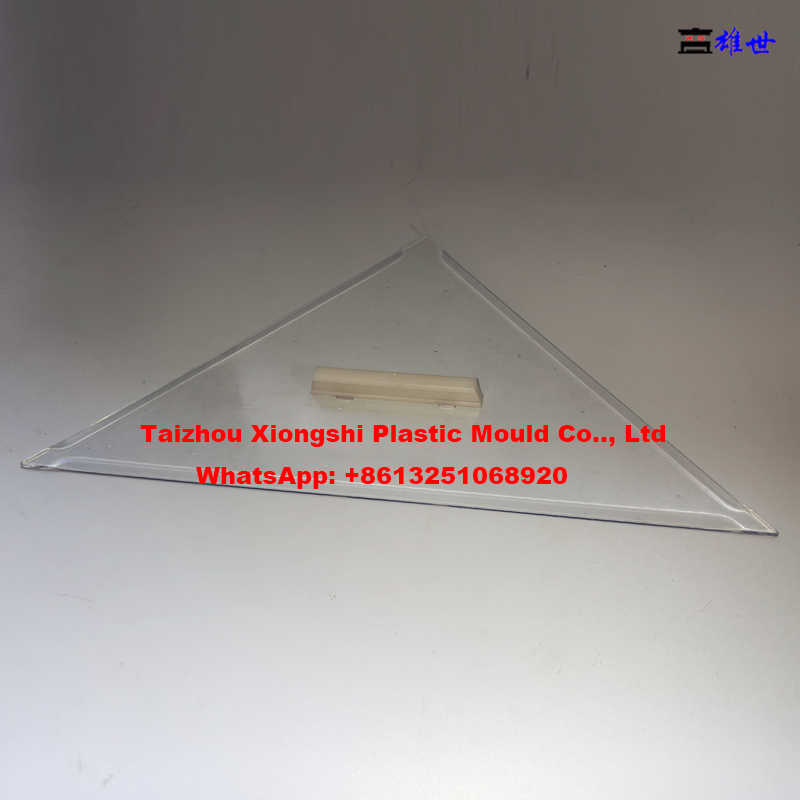

Injection Molding for Rulers - High Quality Ruler Mold and Measuring Scale Mould Supplier. This is acrylic ruler mold.

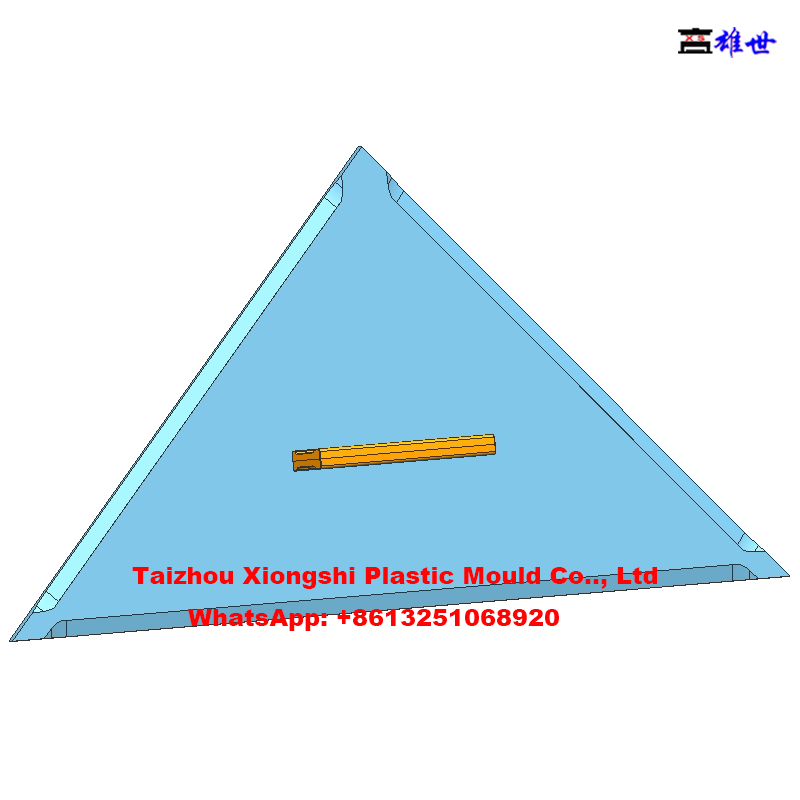

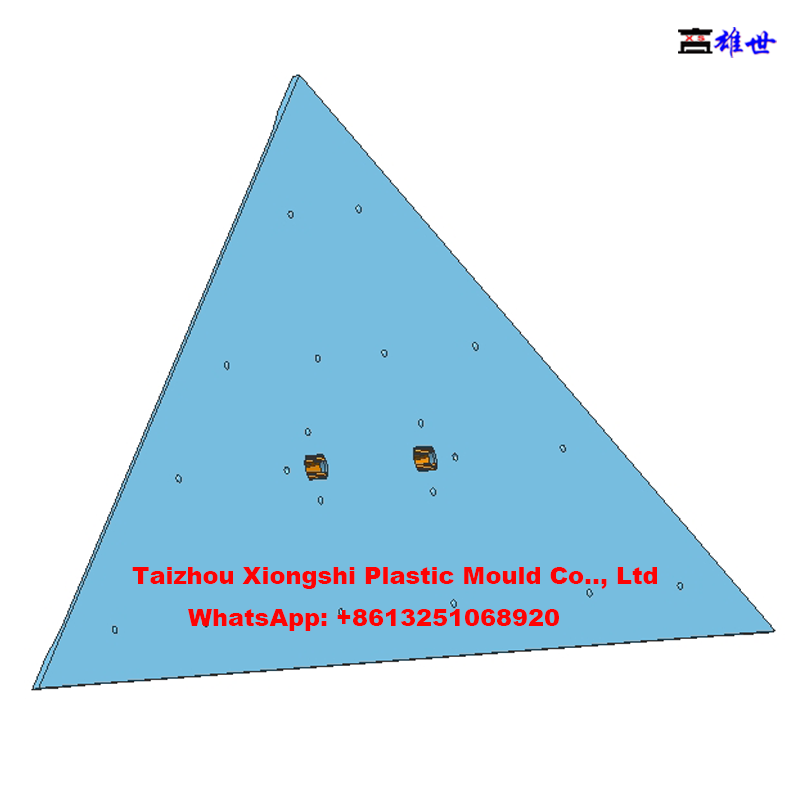

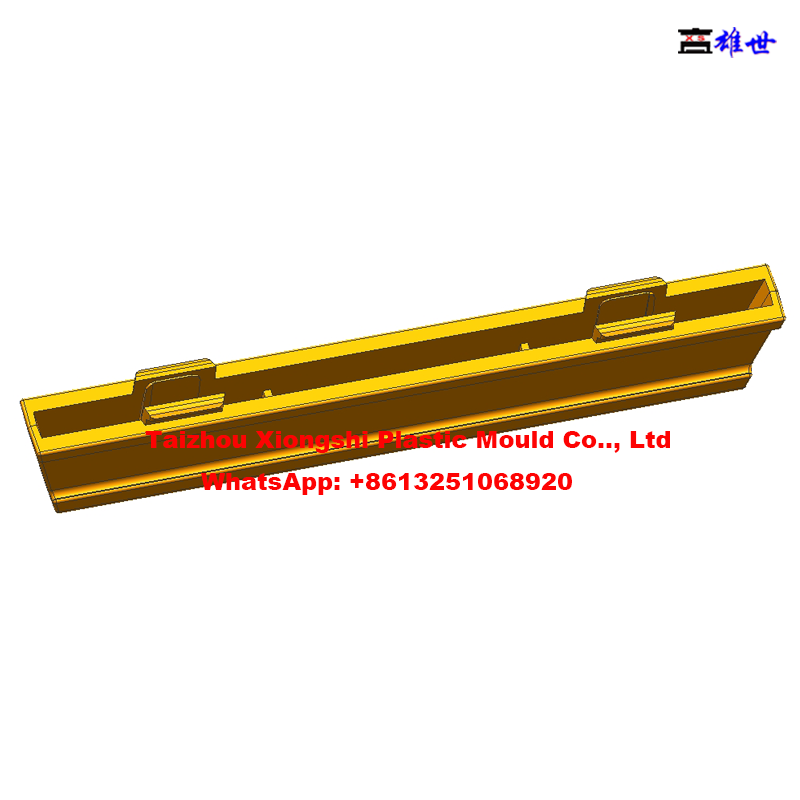

I. Ruler mould part design.

According customer's request, ruler design copy from original samples from the market.

We scan the samples and input the data into computer and then use UG software to complete the part 3D design.

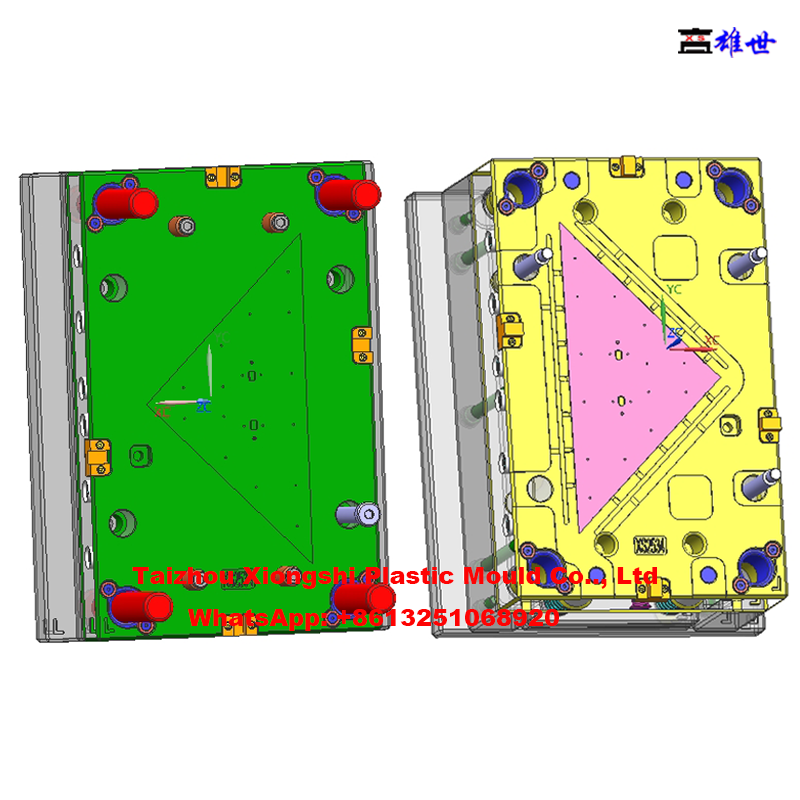

II. Ruler mould 3D design.

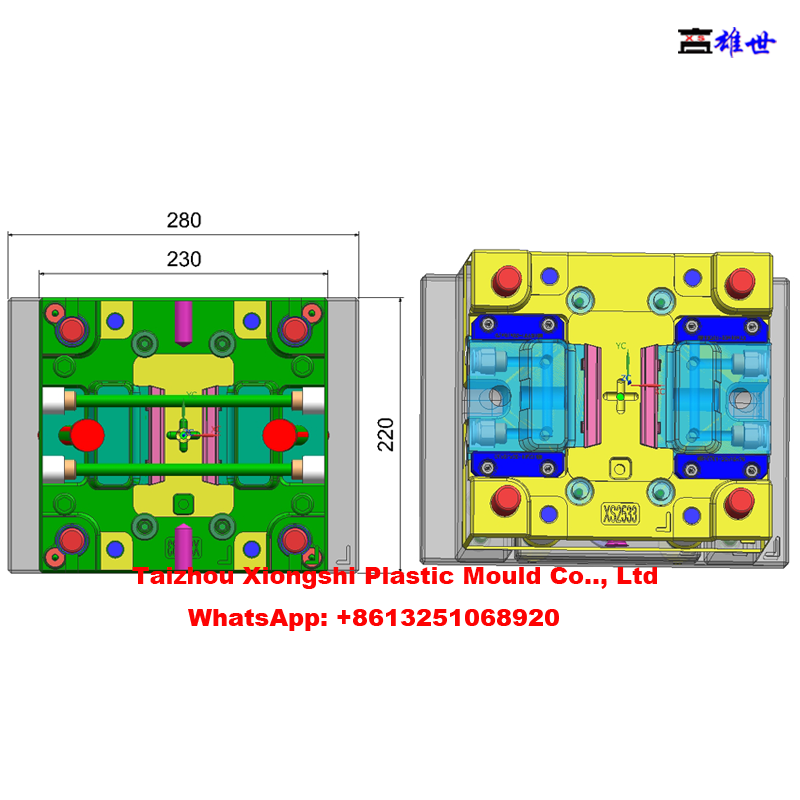

Due to customer's injection machine is very small, so ruler mould was made 1 cavity and ruler small part made 2 cavities. Due to this product design simple and there is original samples can check the gate position and sizes, so there is no necessary to do the DFM analysis and MoldFlow analysis.

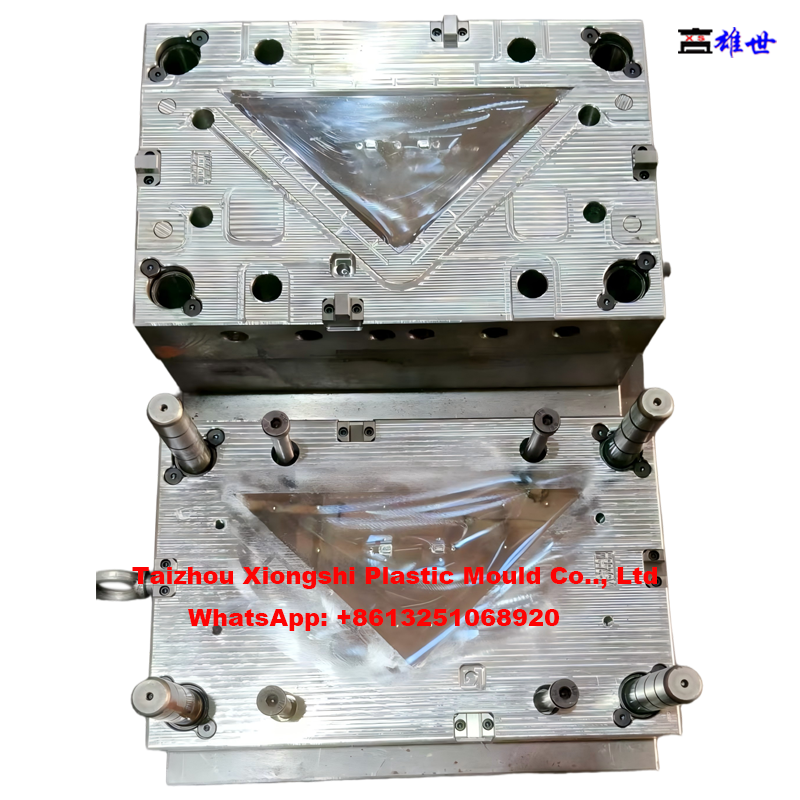

III. Ruler mould machining.
